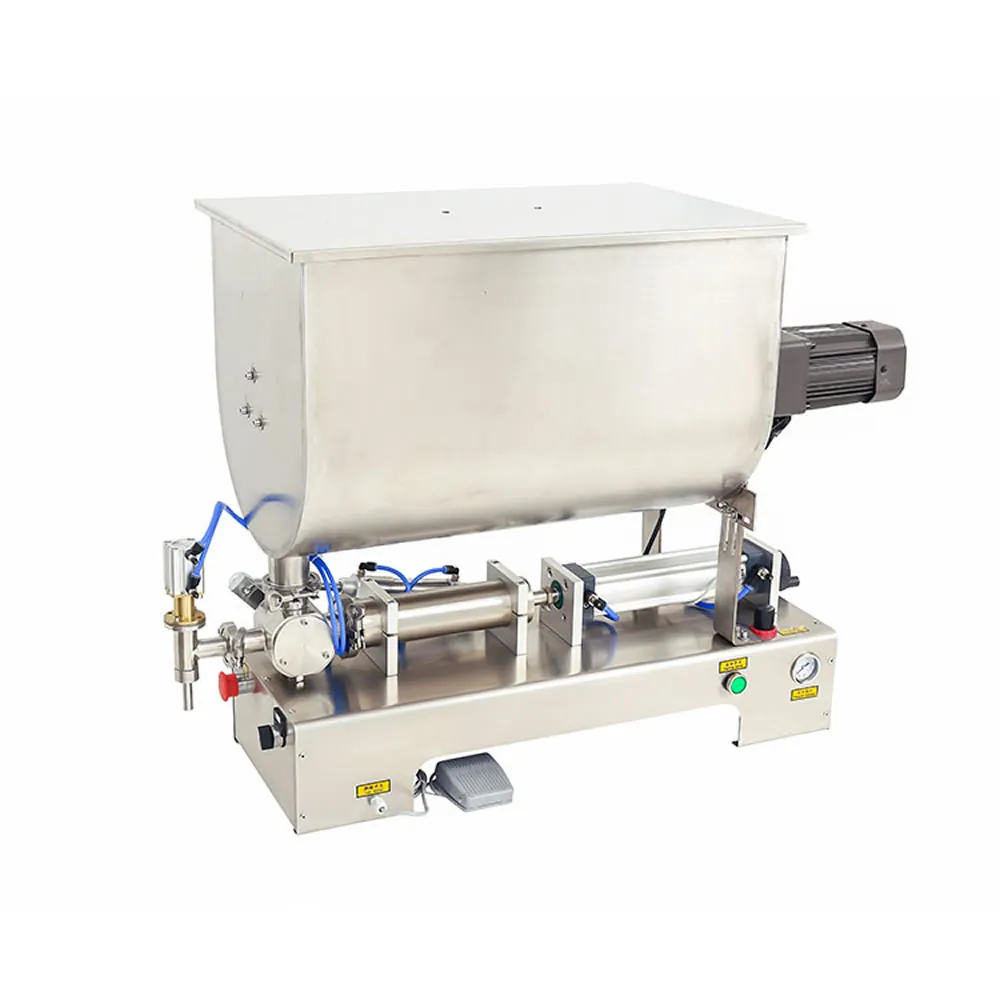

YH10004 Single head semi automatic jam chilli sauce filling machine with U shape heating mixer

Name: YH10004 Single head semi automatic jam chilli sauce filling machine with U shape heating mixer
Brand: Yoho Industrial
SKU: YO-196

Machine U type single head mixing filling machine Filling range 5-100ml,30-300ml,100-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml Filling accuracy ±1% Filling speed ...

Semi-automatic Filling & Packing Machines 1 photos Model 196 CE certified

Machine U type single head mixing filling machine Filling range 5-100ml,30-300ml,100-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml Filling accuracy ±1% Filling speed Filler Liquid or paste, like jelly, juice, sauce, ketchup, flavor oil, liquid chocolate, etc Grain or granule, like coffee, sugar, salt, beans, washing powder, etc Air pressure 0.4-0.6Mpa Power supply single phase,220v,50hz Hopper material SUS304 Material of cylinder SUS304 Hopper volume...

Request a quotation Email our sales team

Technical specifications

Machine	U type single head mixing filling machine
Filling range	5-100ml,30-300ml,100-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml
Filling accuracy	±1%
Filler	Liquid or paste, like jelly, juice, sauce, ketchup, flavor oil, liquid chocolate, etc Grain or granule, like coffee, sugar, salt, beans, washing powder, etc
Air pressure	0.4-0.6Mpa
Power supply	single phase,220v,50hz
Hopper material	SUS304
Material of cylinder	SUS304
Hopper volume	60L
Mixer speed	0-60rpm
Dimension	996050cm

Supply and service

Model	YO-196
Category	Semi-automatic Filling & Packing Machines
Warranty	12 months from commissioning
Delivery	15 – 30 days after order confirmation
Installation	Engineer guidance, remote commissioning support
Payment	T/T, L/C at sight
Certification	CE, manufactured under ISO 9001:2015
Origin	Shanghai, China

About this machine

Machine U type single head mixing filling machine

Filling range 5-100ml,30-300ml,100-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml

Filler Liquid or paste, like jelly, juice, sauce, ketchup, flavor oil, liquid chocolate, etc Grain or granule, like coffee, sugar, salt, beans, washing powder, etc

Power supply single phase,220v,50hz

Applications

YH10004 Single head semi automatic jam chilli sauce filling machine with U shape heating mixer is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.

If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
