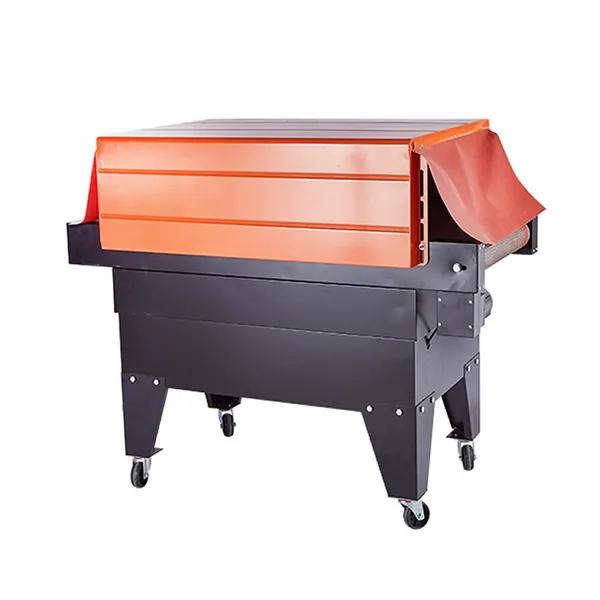

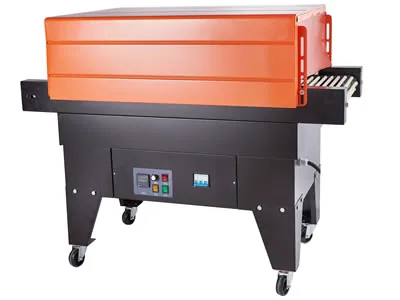

BS4525 Jet Heat Shrinking Machine tunnel

Voltage 380V 50/60HZ Power 7kw Size of shrink Oven 950x450x250mm Conveying speed 0-10m/Min Transport load 10kg Applicable shrink film POF PVC Dimensions 1200x650x830mm...

Semi-automatic Filling & Packing Machines 2 photos Model 207 CE certified
Voltage 380V 50/60HZ Power 7kw Size of shrink Oven 950x450x250mm Conveying speed 0-10m/Min Transport load 10kg Applicable shrink film POF PVC Dimensions 1200x650x830mm packing size 1220x655x670mm/ 0.54CBM Gw 80kg Using high-quality stainless steel heating tube, the internal two-way thermal circulation air makes the heat even, constant temperature, stable and reliable, low noise and long life. The packaged product can be sealed, moisture-proof and...

Technical specifications

Voltage380V 50/60HZ
Power7kw
Size of shrink Oven950x450x250mm
Conveying speed0-10m/Min
Transport load10kg
Applicable shrink filmPOF PVC
Dimensions1200x650x830mm
packing size1220x655x670mm/ 0.54CBM
Gw80kg

Supply and service

ModelYO-207
CategorySemi-automatic Filling & Packing Machines
Warranty12 months from commissioning
Delivery15 – 30 days after order confirmation
InstallationEngineer guidance, remote commissioning support
PaymentT/T, L/C at sight
CertificationCE, manufactured under ISO 9001:2015
OriginShanghai, China

About this machine

Size of shrink Oven 950x450x250mm

packing size 1220x655x670mm/ 0.54CBM

Using high-quality stainless steel heating tube, the internal two-way thermal circulation air makes the heat even, constant temperature, stable and reliable, low noise and long life. The packaged product can be sealed, moisture-proof and impact-proof. It is suitable for multi-item wrapping and pallet packaging. The electronic speed controller can steplessly adjust the speed of the conveyor belt and double-layer heat insulation device to maintain room temperature and ensure that the appearance is not Too hot, stainless steel heater, life can be more than ten years, high-power fan with large air volume and uniform wind

Applications

BS4525 Jet Heat Shrinking Machine tunnel is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.

If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
